WPS (PIN Code) Connection

  1. Select Other setup and press the OK button.

    Wireless LAN setup screen: Select Other setup

  2. Select WPS (PIN code) and press the OK button.

    Other setup screen: Select WPS (PIN code)

  3. Follow the on-screen instructions on a device (such as a computer) to set a PIN code on the wireless router.

    WPS (PIN code) screen: Set the displayed PIN to the wireless router

  4. When the screen on the below appears, press the OK button.

    Completion screen (Connected)

    If a different screen appears, see "Troubleshooting."

  5. Press the COPY button (A).

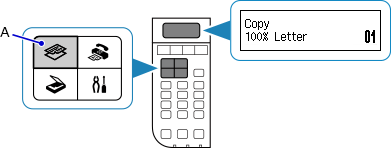

    figure: Press the COPY button

The network connection setup is now complete.
